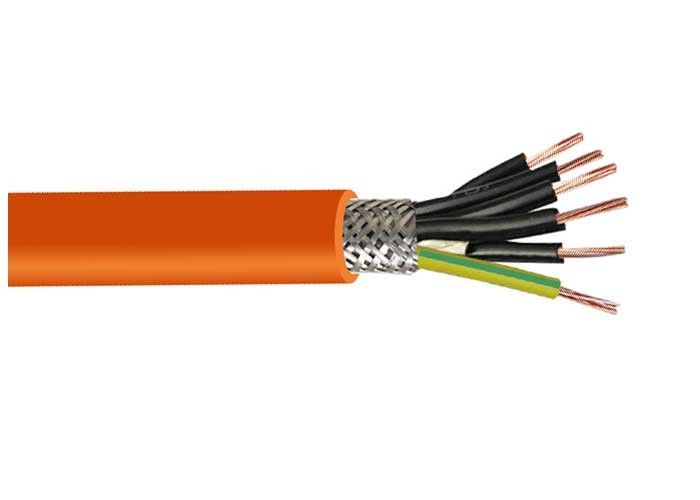

0.6/1kV Low Smoke Zero Halogen Cable ROHS CE Certified CU / XLPE

0.6/1kV Low Smoke Zero Halogen Cable ROHS CE Certified CU / XLPE

Ελάχιστη Ποσότητα Παραγγελίας: 300 m
τιμή: 0.38-25.6
Τυπική συσκευασία: Ξύλινο τύμπανο ή περίπτωση
Περίοδος παράδοσης: Σύμφωνα με το πρόγραμμα
Μέθοδος πληρωμής: L / C, T / T
Ικανότητα εφοδιασμού: 50km/month
Λεπτομέρειες
Τόπος καταγωγής
Κίνα
Μάρκα
QINGDAO YICABLE CABLE
Πιστοποίηση
ROHS CE
ΘΕΡΜΟΚΡΑΣΙΑ:
90 ℃ (κανονική εργασία)
Τύπος:
Χαμηλότερη τάση 0.6/1kV
Χρώμα μόνωσης:
Πορτοκαλής ή προαιρετικός
Λειτουργία:
Πυρίμαχος
Δείγματος:
11.5m
εφαρμογή:
στο εσωτερικό, στη σήραγγα, τάφρος καλωδίων, υπόγεια
Πιστοποιητικά:
CE KEMA VDE, IEC
Επισημαίνω:

low smoke zero halogen wire

,

lszh power cable

Περιγραφή προϊόντος

0.6/1kV Low Smoke Zero Halogen ROHS CE Certified CU / XLPE / TWCB/ LSZH Cable



. Application for Fire Resistive Power Cable, Fire Rated Power Cable


  • This cable is specially designed for areas where integrity of electrical circuit is critical to maintain the power supply. Application usage can be found in:- emergency lightings, control and power circuits, fire alarm systems, communication systems, lifts and escalators, power stations, underground tunnels, sewage treatment plans, high-rise buildings, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals,etc.

Specifications

Conductor : Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper
Fire Barrier : Mica Tape
Insulation : XLPE (For FR-200) or LSOH (For FR-300)
Sheath :

LSOH



2. Construction for Fire Resistive Power Cable, Fire Rated Power Cable

Conductor : Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper
Fire Barrier : Mica Tape
Insulation : XLPE (For FR-200) or LSOH (For FR-300)
Sheath : LSOH
Insulation Colour :

2C – Brown & Blue

3C – Brown, Black & Grey

4C – Brown, Black, Grey & Blue

2C+E – Brown, Blue + Green/Yellow

3C+E – Brown, Black, Grey + Green/Yellow

4C+E – Brown, Black, Grey, Blue + Green/Yellow

5C & above – White Cores Printed With Number

Note:
1. The models also contain fire-resistant type of low voltage power cable.
2. When signing the contract, the fire resistant type must be specified. For example, if type A is preferred, please add "A" to the end of "ZR", forming "ZRA", and A is usually used in places where the fire resistant property is highly required. B and C follow the same rule. In addition, if there is no letter after "ZR", the cable will be produced following "ZRC".


0.6/1kV Low Smoke Zero Halogen Cable ROHS CE Certified CU / XLPE 0

Συνιστώμενα προϊόντα
προϊόντα
λεπτομέρειες για τα προϊόντα
0.6/1kV Low Smoke Zero Halogen Cable ROHS CE Certified CU / XLPE
Ελάχιστη Ποσότητα Παραγγελίας: 300 m
τιμή: 0.38-25.6
Τυπική συσκευασία: Ξύλινο τύμπανο ή περίπτωση
Περίοδος παράδοσης: Σύμφωνα με το πρόγραμμα
Μέθοδος πληρωμής: L / C, T / T
Ικανότητα εφοδιασμού: 50km/month
Λεπτομέρειες
Τόπος καταγωγής
Κίνα
Μάρκα
QINGDAO YICABLE CABLE
Πιστοποίηση
ROHS CE
ΘΕΡΜΟΚΡΑΣΙΑ:
90 ℃ (κανονική εργασία)
Τύπος:
Χαμηλότερη τάση 0.6/1kV
Χρώμα μόνωσης:
Πορτοκαλής ή προαιρετικός
Λειτουργία:
Πυρίμαχος
Δείγματος:
11.5m
εφαρμογή:
στο εσωτερικό, στη σήραγγα, τάφρος καλωδίων, υπόγεια
Πιστοποιητικά:
CE KEMA VDE, IEC
Ποσότητα παραγγελίας min:
300 m
Τιμή:
0.38-25.6
Συσκευασία λεπτομέρειες:
Ξύλινο τύμπανο ή περίπτωση
Χρόνος παράδοσης:
Σύμφωνα με το πρόγραμμα
Όροι πληρωμής:
L / C, T / T
Δυνατότητα προσφοράς:
50km/month
Επισημαίνω

low smoke zero halogen wire

,

lszh power cable

Περιγραφή προϊόντος

0.6/1kV Low Smoke Zero Halogen ROHS CE Certified CU / XLPE / TWCB/ LSZH Cable



. Application for Fire Resistive Power Cable, Fire Rated Power Cable


  • This cable is specially designed for areas where integrity of electrical circuit is critical to maintain the power supply. Application usage can be found in:- emergency lightings, control and power circuits, fire alarm systems, communication systems, lifts and escalators, power stations, underground tunnels, sewage treatment plans, high-rise buildings, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals,etc.

Specifications

Conductor : Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper
Fire Barrier : Mica Tape
Insulation : XLPE (For FR-200) or LSOH (For FR-300)
Sheath :

LSOH



2. Construction for Fire Resistive Power Cable, Fire Rated Power Cable

Conductor : Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper
Fire Barrier : Mica Tape
Insulation : XLPE (For FR-200) or LSOH (For FR-300)
Sheath : LSOH
Insulation Colour :

2C – Brown & Blue

3C – Brown, Black & Grey

4C – Brown, Black, Grey & Blue

2C+E – Brown, Blue + Green/Yellow

3C+E – Brown, Black, Grey + Green/Yellow

4C+E – Brown, Black, Grey, Blue + Green/Yellow

5C & above – White Cores Printed With Number

Note:
1. The models also contain fire-resistant type of low voltage power cable.
2. When signing the contract, the fire resistant type must be specified. For example, if type A is preferred, please add "A" to the end of "ZR", forming "ZRA", and A is usually used in places where the fire resistant property is highly required. B and C follow the same rule. In addition, if there is no letter after "ZR", the cable will be produced following "ZRC".


0.6/1kV Low Smoke Zero Halogen Cable ROHS CE Certified CU / XLPE 0
