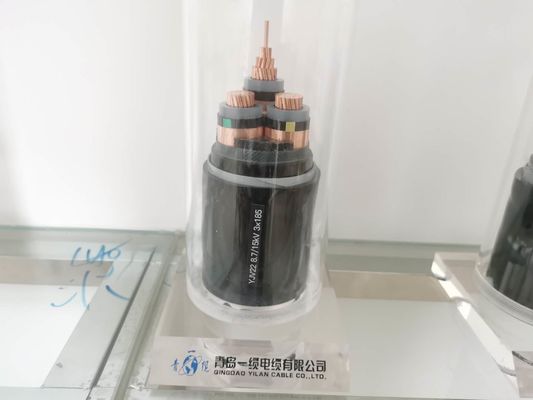

Xlpe insulated copper electric power cable armored 0.6 / 1kv
Features and uses of XLPE insulated power cables:
The cross-linked polyethylene insulated power cable has the characteristics of high mechanical strength, strong environmental stress resistance, excellent electrical performance, and strong current resistance.
Chemical corrosion. In addition, the lightweight and simple product is easy to use. This product is suitable for transmission and distribution systems with a rated voltage of 0.6/1kv.
It has the main characteristics of fire-resistant cables. The cables are not easy to catch fire or continue to burn within a certain range. It is suitable for power stations, subways, tunnels, high-rise buildings, and large-scale
Dense distributed cables in industrial and mining enterprises, oil fields, coal mines and other places.
Executive standard:
GB/T 12706, IEC 60502 and related domestic and foreign standards, such as BS, VDE, JIS, AEIC, etc.
Physical and Electrical Characteristics
| No.cores x | Insulation | Sheath | Outer Ø | weight | Current ratings in air 30℃ | Current ratings buried 20℃ | |
| cross-sec. | thickness | thickness | approx. | approx. | |||
| Nominal | |||||||
| Phase | Neutral | value | |||||
| mm² | mm | mm | mm | mm | kg / km | A | A |
| 3×4+1×2.5 | 0.7 | 0.7 | 1.8 | 12.7 | 277 | 37 | 47 |
| 3×6+1×4 | 0.7 | 0.7 | 1.8 | 13.9 | 363 | 47 | 60 |
| 3×10+1×6 | 0.7 | 0.7 | 1.8 | 16.1 | 527 | 64 | 81 |
| 3×16+1×10 | 0.7 | 0.7 | 1.8 | 18.6 | 766 | 85 | 106 |
| 3×25+1×16 | 0.9 | 0.7 | 1.8 | 22.2 | 1140 | 113 | 137 |
| 3×35+1×16 | 0.9 | 0.7 | 1.8 | 24.6 | 1475 | 139 |
164 |
What is cross-linked polyethylene/XLPE?
Cross-linked polyethylene, also known as XLPE, is a form of insulation produced by heating and high pressure. One way to produce XLPE insulation is to irradiate the compound. Another method is to use peroxide to chemically crosslink the compound. The most important attribute of XLPE is its electrical properties. Cables with XLPE insulation can carry large currents and high voltages. A common application of XLPE is medium and high voltage applications. The physical and electrical properties of XLPE make it an ideal choice for use in industrial environments.
Common types of XLPE wires or cables
Building wire (XHHW)
Car line (GXL)
power cable
Control Cable
Direct buried thread
